After years of research, testing and competitive analysis, APR is pleased to announce a technical partnership with Brembo; the world’s foremost leader in upgraded brake systems!
Brembo has consistently offered uncompromising solutions that harmoniously mesh with APR’s performance upgrades. Through decades of research, development and championship wins the world over, Brembo has created unique systems that outperform the competition on the track, while simultaneously offering a civilized daily driving experience. Expect an excellent resistance to brake fade, unmatched stopping power, and reliability that will stand the test of time.

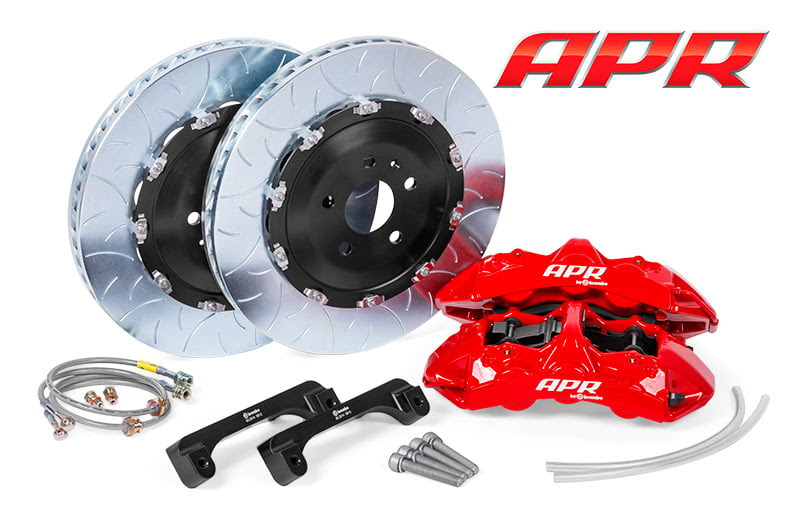

Each APR by Brembo Brake system features red six-piston monobloc calipers with billet brackets, Brembo’s Type III two-piece floating discs, Goodridge braided brake lines and TS20 brake pads. Every system is custom tailored to the vehicle on which it’s being installed to ensure a seamless integration with the factory master cylinder, ABS and traction control systems.
Quick Facts:
– APR By Brembo GT System
– Red, six-piston, monobloc calipers with APR by Brembo logos
– Calipers are equipped with dust boots and inner pressure seals for pistons (reduces maintenance)
– Billet aluminum, black anodized caliper brackets
– Type III two-piece floating and vented discs (350×34, 355×32, 380×32 & 380×34)
– Billet aluminum, black anodized disc hats (lowers unsprung weight)
– Goodridge braided stainless steel braided brake lines
– TS20 street/track pads (low dust / noise)
– Chamfered and shimmed brake pads for lower noise at low temps
– Fully compatible with factory ABS and traction control systems
– OEM pedal feel, control and modulation compared to OEM
– Low maintenance costs
– Low noise and vibration
– High strength-to-weight ratio
– Long disc life
– Brembo warranty
Calipers
Each system features Brembo’s six-piston, monobloc calipers. The fixed, radial-mount opposed-piston design is created from a single piece of lightweight aluminum alloy that optimizes the ratio between mechanical stiffness and weight. In contrast, factory calipers are typically extremely heavy and flexible, limiting their effectiveness. Integrated stiffening bridges add rigidity to critical areas of the caliper, while an open pad area reduces weight and allows for excellent heat dissipation.
Each Brembo system is engineered for an optimum brake balance, and is sized specifically to integrate with the factory master cylinder, ABS and traction control systems. The result is better brake feel, control and modulation under normal driving conditions, or track use. This is achieved through varying size piston bores. The sequential piston sizes are staggered to reduce brake pad taper and enhance stopping power, while also extending pad life. Furthermore, the pistons incorporate a twin seal design that restricts brake fluid contamination. This often-overlooked feature greatly extends caliper life, reducing the need for costly maintenance as is common with other budget “big-brake” upgrades.
Discs
The APR By Brembo Braking System features Type III two-piece floating and vented discs in a multitude of sizes depending on application. The Type III face pattern were chosen for their unique technical characteristics as they provide the highest bite and torque of any available Brembo face type. The discs are designed to be as lightweight as possible with out sacrificing strength or longevity, which greatly sets Brembo apart from the competition. Brembo’s performance and racing discs use a proprietary cast iron alloy that provides a very high friction coefficient, strength and resistance to thermal shock and fatigue. Weight savings are made possible through the use of billet aluminum bells, which reduce unsprung weight, benefiting handling, acceleration and overall vehicle dynamics.
Brembo’s proprietary floating hardware system permits a specified amount of disc float, allowing the system to grow independently from the bell under use. This often-overlooked or underdeveloped feature is what sets Brembo’s systems a step well beyond the competition. The design helps to prevent distortion and premature wear, as well as the annoying vibrations and noise common on so many systems.
Under braking, the brake disc rotates and torque is transmitted through the fastener. The system allows for float in both radial and axial directions, which allows the disc to expand and contract under high temperature, ultimately reducing stress and increasing longevity of the components. Lastly, Brembo’s unique anti-rattle disc hardware uses a spring fastener to slightly preload the assembly, which eliminates the noise generally associated with other floating discs on the market.
The discs large design help to increase the thermal capacity of the system. The Type III pattern cut into the surface of the disc helps to improve pad bite, wet weather performance and continually refreshes the brake pad surface. Type III’s are extensively used in professional motorsports and offers a high initial response with excellent release characteristics. Directional vanes in the in the center of the discs causes air to be pumped from the center of the disc, through the vanes and out through the outside of the disc. This greatly enhances the disc’s ability to dissipate heat, allowing for heavy and frequent braking with minimal fade.
355 mm x 32 mm – ABB0001 – Type III – 2 Piece Floating and Vented – Audi A3 (8P/MKII) 2.0T
355 mm x 32 mm – ABB0003 – Type III – 2 Piece Floating and Vented – Audi A3 (8V/MKII) 2.0T
350 mm x 34 mm – ABB0004 – Type III – 2 Piece Floating and Vented – Audi S3 (8V/MKIII) 2.0T
380 mm x 32 mm – ABB0005 – Type III – 2 Piece Floating and Vented – Audi A4 / A5 (B8/B8.5) 2.0T
380 mm x 32 mm – ABB0005 – Type III – 2 Piece Floating and Vented – Audi S4 / S5 (B8/B8.5) 3.0T
380 mm x 34 mm – ABB0006 – Type III – 2 Piece Floating and Vented – Audi RS5 (B8/B8.5) 4.2L V8
380 mm x 34 mm – ABB0007 – Type III – 2 Piece Floating and Vented – Audi TT RS (8J/MKII) 2.5T
355 mm x 32 mm – ABB0001 – Type III – 2 Piece Floating and Vented – Volkswagen GTI (MK5) 2.0T
355 mm x 32 mm – ABB0001 – Type III – 2 Piece Floating and Vented – Volkswagen GTI (MK6) 2.0T
355 mm x 32 mm – ABB0003 – Type III – 2 Piece Floating and Vented – Volkswagen GTI (MK7) 2.0T
350 mm x 34 mm – ABB0002 – Type III – 2 Piece Floating and Vented – Volkswagen Golf R (MK6) 2.0T
350 mm x 34 mm – ABB0004 – Type III – 2 Piece Floating and Vented – Volkswagen Golf R (MK7) 2.0T
Brake Lines
Goodridge lines provide the tightest bend radius in the industry and the lowest rate of expansion. This ensures every inch of pressure from the pedal is transferred to the caliper. These are the only lines approved for use in every country in the world and they are guaranteed for life. The lines feature a PTFE inner hose and are covered by an abrasion and corrosion resistant braided stainless steel. This helps to provide a responsive feel and eliminates the “spongy” feel common on rubber brake lines all on a system that will stand the test of time and stay good looking for years to come.
Caliper Brackets
The caliper brackets are milled from superior quality billet materials to ensure a precise fit that meets strength requirements for high performance driving conditions. Furthermore the brackets are analyzed and tested to ensure fatigue life. Lastly, they are anodized black for an attractive finish.
Pads
The included TS20 brake pads are an ideal dual purpose compounds for street and track use. The pads are designed with most customers in mind, offering a solution that can be tracked and then driven home without changing the pads. They feature an aggressive initial bite and good heat resistance while keeping dust and noise to a minimum. Shims are included to help defeat noise at low temperature and furthermore noise is defeated through pad chamfering.
Please Note: All APR by Brembo brakes are built to order. Please allow up to 10 business days for the product to ship once an order is received.
355 mm x 32 mm – ABB0001 – Type III – 2 Piece Floating and Vented – $4,199.00 – Audi A3 (8P/MKII) 2.0T
355 mm x 32 mm – ABB0003 – Type III – 2 Piece Floating and Vented – $4,199.00 – Audi A3 (8V/MKII) 2.0T
350 mm x 34 mm – ABB0004 – Type III – 2 Piece Floating and Vented – $4,199.00 – Audi S3 (8V/MKIII) 2.0T
380 mm x 32 mm – ABB0005 – Type III – 2 Piece Floating and Vented – $4,799.00 – Audi A4 / A5 (B8/B8.5) 2.0T
380 mm x 32 mm – ABB0005 – Type III – 2 Piece Floating and Vented – $4,799.00 – Audi S4 / S5 (B8/B8.5) 3.0T
380 mm x 34 mm – ABB0006 – Type III – 2 Piece Floating and Vented – $4,799.00 – Audi RS5 (B8/B8.5) 4.2L V8
380 mm x 34 mm – ABB0007 – Type III – 2 Piece Floating and Vented – $4,799.00 – Audi TT RS (8J/MKII) 2.5T
355 mm x 32 mm – ABB0001 – Type III – 2 Piece Floating and Vented – $4,199.00 – Volkswagen GTI (MK5) 2.0T
355 mm x 32 mm – ABB0001 – Type III – 2 Piece Floating and Vented – $4,199.00 – Volkswagen GTI (MK6) 2.0T
355 mm x 32 mm – ABB0003 – Type III – 2 Piece Floating and Vented – $4,199.00 – Volkswagen GTI (MK7) 2.0T
350 mm x 34 mm – ABB0002 – Type III – 2 Piece Floating and Vented – $4,199.00 – Volkswagen Golf R (MK6) 2.0T
350 mm x 34 mm – ABB0004 – Type III – 2 Piece Floating and Vented – $4,199.00 – Volkswagen Golf R (MK7) 2.0T
Replacement parts are listed on our website.
